Bale ShredderS & PROCESSORS

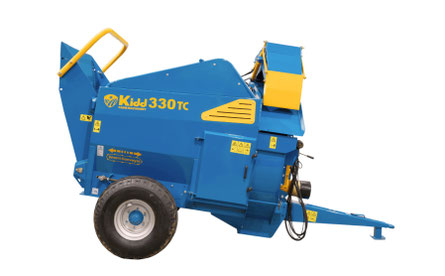

Kidd 330

  • Capacity: 3.3m³
  • Blow Distance:* 25m
  • Overall Length: c/w drawbar (mounted 4.28m (2.65m)
  • Overall Width: 2.07m
  • Overall Height Chute Extended: 2.69m
  • Overall Height chute folded: 2.54m
  • Bale chamber width: 1.4m
  • Bale chamber height :1.0m
  • Bale chamber length: 1.3m
  • Weight unloaded: 1750kg
  • Tyre size: (standard) 10/75 x 15.3 x 10ply
  • Max round bale diameter: 1.8m
  • Max square bale dimensions: 1.2m x 1.2m x 2.8m
  • Min tractor PTO requirements: 80hp (60kw)
MORE INFORMATION & PRICING

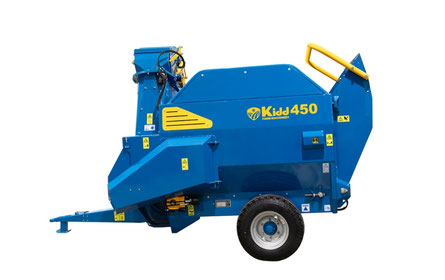

Kidd 450

  • Capacity: 4.5m³
  • Blow Distance*: 25m
  • Overall Length: c/w drawbar (mounted 4.36m
  • Overall Width: 2.23m
  • Overall Height: Chute Extended 3.29m
  • Overall Height: chute folded
  • *With standard wheels fitted 2.69m
  • Bale chamber width: 1.7m
  • Bale chamber height: 1.1m
  • Bale chamber length: 1.7m
  • Weight unloaded: 2100kg
  • Tyre size: (standard) 10/75 x 15.3 x 10ply
  • Max round bale diameter: 2.1m
  • Max square bale dimensions: 1.2m x 1.2m x 3.1m
  • Min tractor PTO requirements: 80hp (60kw)



MORE INFORMATION & PRICING

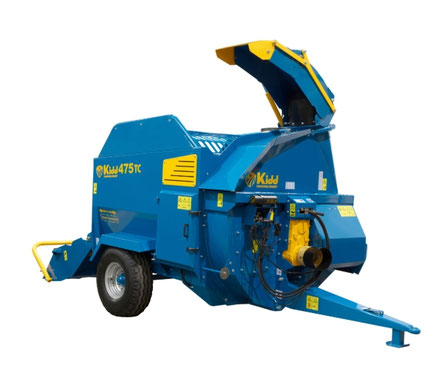

KIDD 475

  • Capacity: 4.8m³
  • Blow Distance*: 25m
  • Overall Length c/w drawbar: (mounted 4.35m
  • Overall Width: 2.26m
  • Overall Height Chute Extended: 3.33m
  • Overall Height chute folded: 2.75m
  • Bale chamber width: 1.8m
  • Bale chamber height: 1.1m
  • Bale chamber length: 1.6m
  • Weight unloaded: 2340kg
  • Tyre size: (standard) 12.5/80 x 15.3 x 14ply
  • Max round bale diameter: 2.1m
  • Max square bale dimensions: 1.2m x 1.2m x 3.1m
  • Min tractor PTO requirements: 100hp (60KW)
MORE INFORMATION & PRICING

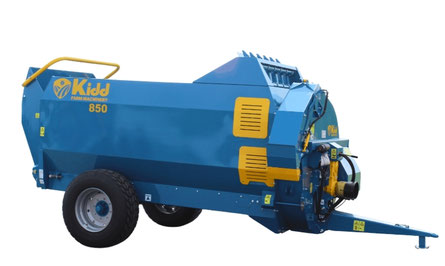

KIDD 850

  • Capacity: 8.5m³
  • Blow Distance:* 25m
  • Overall Length c/w drawbar :(mounted 4.85m
  • Overall Width: 2.21m
  • Overall Height Chute Extended: 2.75m
  • Overall Height chute folded: 3.35m/ 2.7m
  • Bale chamber width: 1.7m
  • Bale chamber height: 1.4m
  • Bale chamber length: 3.4m
  • Weight unloaded: 2850kg
  • Tyre size: (standard) 12.5/80 x 15.3 x 14 ply
  • Max round bale diameter: 2.1 m
  • Max square bale dimensions: 1.2m x 1.2m x 3.1m
  • Min tractor PTO requirements: 80hp (60kw)
MORE INFORMATION & PRICING

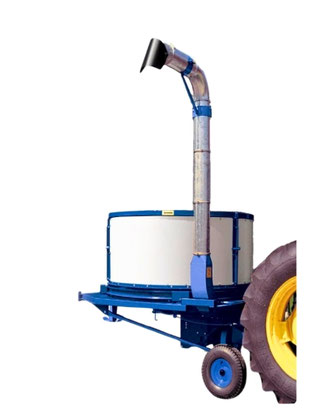

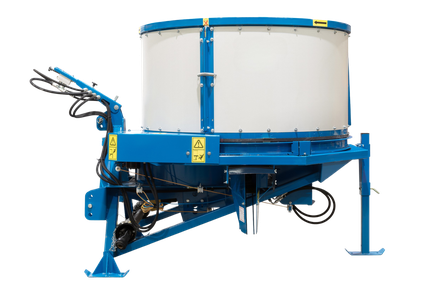

KIDD 804

  • Tub Diameter (m) 1.58
  • Overall Width (m) 1.7
  • Overall Height (m) 1.8
  • Overall Length (m) 2.26
  • PTO Power Requirements (HP) 45
  • Discharge ports on both sides
  • Variety of chutes options to suite your application
  • Heavy duty rotor
MORE INFORMATION & PRICING

KIDD 806

  • Tub Diameter (m) 1.88
  • Overall Width (m) 2.0
  • Overall Height (m) 1.9
  • Overall Length (m) 2.70
  • PTO Power Requirements (HP) 50
  • Discharge ports on both sides
  • Available as a mounted or trailed unit
  • Variety of chutes options to suite your application
  • Heavy duty rotor
MORE INFORMATION & PRICING

KIDD 807

  • Tub Diameter (m) 2.14
  • Overall Width (m) 2.2
  • Overall Height (m) 1.9
  • Overall Length (m) 2.70
  • PTO Power Requirements (HP) 50
  • Discharge ports on both sides
  • Available as a mounted or trailed unit
  • Variety of chutes options to suite your application
  • Heavy duty rotor
MORE INFORMATION & PRICING

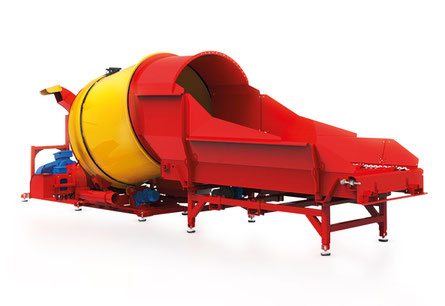

TOMAHAWK C120 Calibrator

  • Transport width (folded): 2.39m
  • Transport width (un-folded): 3.12m
  • Transport length (folded): 5.89m
  • Transport height:  3.3m
  • Overall length: 9.13m
  • Loading height: 2.82m
  • Conveyor discharge height (max): 4.59m
  • Tractor power (min.): 180HP / 135kW
  • PTO speed: 1,000 rpm
  • Unladen weight: 5,500kg
MORE INFORMATION & PRICING

TOMAHAWK 6100H



  • Capacity (m3): 1.7
  • Bale chamber (tailgate down): 1.27 x 0.8 x 1.24
  • Blow distance (max.): 12m
  • Tractor power (min.): 70HP / 53kW
  • Overall width (chute closed): 1.72m 1.80m
  • Overall length (tailgate up): 2.43m
  • Overall length (tailgate/bale clamp down): 2.69m
  • Overall height (chute closed): 2.05m
  • Unladen weight: 777kg 858kg
  • Lift capacity (min.): 1.4t



MORE INFORMATION & PRICING

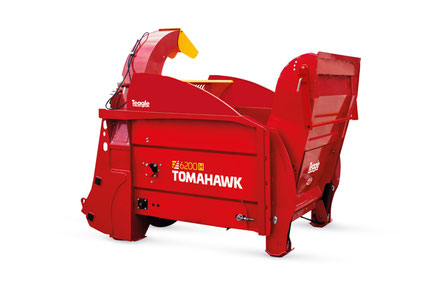

Tomahawk 6200H



  • Capacity (m3):  2.5
  • Bale chamber (tailgate down): 1.43 x 1.20 x 2.90m
  • Blow distance (max.): 13.5m
  • Tractor power (min.): 80HP / 60kW
  • Overall width (chute closed): 1.69m
  • Overall length (tailgate up): 2.70m
  • Overall length (tailgate/bale clamp down): 4.0m
  • Overall height (chute closed): 2.52m
  • Unladen weight: 1,510kg
  • Lift capacity (min.): 2.8t





MORE INFORMATION & PRICING

Tomahawk 8200M

  • Chute:  Swivel
  • Dual Chop:  No
  • Silage:  Yes
  • Straw:  Spread
  • Capacity (m3): 3.2
  • Bale chamber (tailgate down): 1.43 x 1.35 x 3.00m
  • Blow distance (max.): 20m
  • Tractor power (min.): 140HP / 105kW
  • Overall width (chute closed): 1.87m
  • Overall length (tailgate up): 3.02m
  • Overall length (tailgate/bale clamp down): 4.88m
  • Overall height (chute closed): 2.43m
  • Unladen weight: 2,022kg





MORE INFORMATION & PRICING

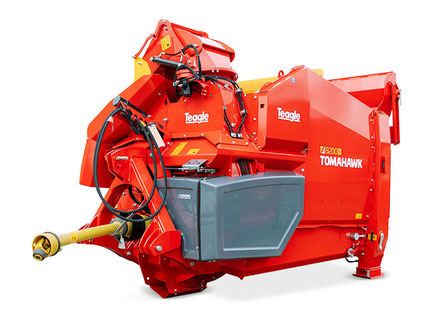

Tomahawk 8200T

  • Chute: Swivel
  • Dual Chop: No
  • Silage: Yes
  • Straw: Spread
  • Capacity (m3): 3.2
  • Bale chamber (tailgate down): 1.43 x 1.35 x 3.00m
  • Blow distance (max.): 20m
  • Tractor power (min.): 60HP / 45kW
  • Overall width (chute closed): 2.03m
  • Overall length (tailgate up): 4.12m
  • Overall length (tailgate/bale clamp down): 5.98m
  • Overall height (chute closed): 2.57m
  • Unladen weight: 2,213kg







MORE INFORMATION & PRICING

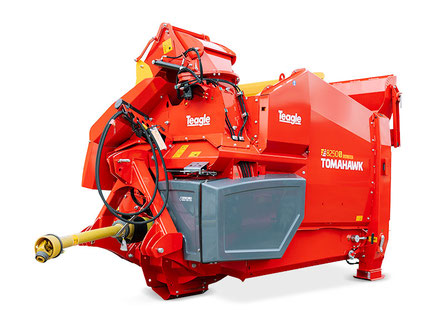

Tomahawk 8250M

  • Chute: Swivel
  • Dual Chop: Yes
  • Silage: No
  • Straw: Chop/Spread
  • Crossbeaters: 1
  • Capacity (m3): 3.2
  • No. of 5’ round bales: 2
  • No. of 8’ rect' bales (4’x 2’6”/ 4’x4’): 1/1
  • Bale chamber (tailgate down): 1.43 x 1.35 x 3.00m
  • Blow distance (max.): 20m
  • Tractor power (min.): 150HP / 113kW
  • Overall width (chute closed): 1.87m
  • Overall length (tailgate up): 3.02m
  • Overall length (tailgate/bale clamp down): 4.88m
  • Overall height (chute closed): 2.43m
  • Unladen weight: 2,166kg

Tomahawk 8250T

  • Chute: Swivel
  • Dual Chop: Yes
  • Silage : No
  • Straw: Chop/Spread
  • Capacity (m3): 3.2
  • Bale chamber (tailgate down): 1.43 x 1.35 x 3.00m
  • Blow distance (max.): 20m
  • Tractor power (min.): 80HP / 60kW
  • Overall width (chute closed): 2.03m
  • Overall length (tailgate up): 4.12m
  • Overall length (tailgate/bale clamp down): 5.98m
  • Overall height (chute closed): 2.57m
  • Unladen weight: 2,357kg










MORE INFORMATION & PRICING

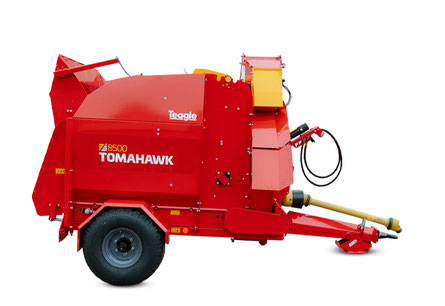

Tomahawk 8500

  • Chute: Side
  • Dual Chop: No
  • Silage : Yes
  • Straw: Yes
  • Capacity (m3):4.5
  • Bale chamber (tailgate down):1.70 x 1.25 x 2.98m
  • Blow distance (max.): 25m
  • Tractor power (min.): 80HP / 60kW
  • Overall width (chute closed): 2.44m
  • Overall length (tailgate up): 4.14m
  • Overall length (tailgate/bale clamp down): 5.38m
  • Overall height (chute closed): 2.59m
  • Unladen weight: 2,080kg





MORE INFORMATION & PRICING

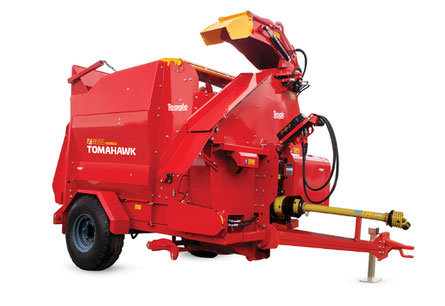

Tomahawk 8555

  • Chute: Swivel
  • Dual Chop: Yes
  • Silage : No
  • Straw: Yes
  • Capacity (m3): 4.5
  • Bale chamber (tailgate down): 1.70 x 1.25 x 2.98m
  • Blow distance (max.): 22m
  • Tractor power (min.): 80HP / 60kW
  • Overall width (chute closed): 2.16m
  • Overall length (tailgate up): 4.14m
  • Overall length (tailgate/bale clamp down): 5.38m
  • Overall height (chute closed): 2.77m
  • Unladen weight: 2415kg



MORE INFORMATION & PRICING

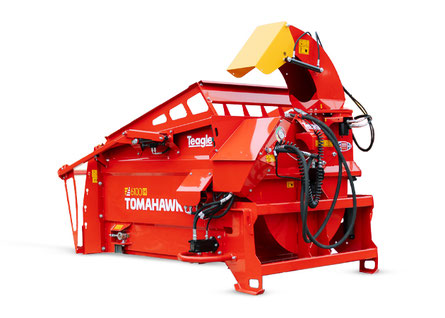

Description
 		9500
 		9500SC
Chute
 		Side
 		Swivel
Dual Chop
 		No
 		No
Silage
 		Yes***
 		Yes***
Straw Yes Yes
Crossbeaters
2
2
Capacity (m³)
8.0
8.0
No. of 5' round bales
3
3
No. of 8’ rect' bales (4’x 2’6”/ 4’x4’)
2/1
2/1
Bale chamber (tailgate down) W x H x L
 		1.70 x 1.55 x 4.00m 1.70 x 1.55 x 4.00m
Blow distance (max.)
25m
22m
Tractor power (min.)
80HP / 60kW
80HP / 60kW
PTO speed 1,000 rpm 1,000 rpm
Overall width (chute closed)
2.49m
2.21m
Overall length (tailgate up)
5.2m
5.2m
Overall length (tailgate/bale clamp down)
6.33m
 		6.33m
Overall height (chute closed)
2.9m
2.9m
Unladen Weight
3,007kg
3,017kg
   		Column 2


MORE INFORMATION & PRICING

TOMAHAWK 1010 & 1010SC

Description
 		1010
 		1010SC
Chute
 		Side
 		Swivel
Dual Chop
 		No
 		No
Silage
 		Yes*** Yes***
Straw Yes Yes
Crossbeaters
2
2
Capacity (m³)
10.0
10.0
No. of 5' round bales
3***
3***
No. of 8’ rect' bales (4’x 2’6”/ 4’x4’)
4/2
4/2
Bale chamber (tailgate down) W x H x L
 		1.70 x 1.58m x 5.70m 1.70 x 1.58m x 5.70m
Blow distance (max.)
25m
22m
Tractor power (min.)
80HP / 60kW
80HP / 60kW
PTO speed 1,000 rpm 1,000 rpm
Overall width (chute closed)
2.42m
2.42m
Overall length (tailgate up)
6.17m
6.17m
Overall length (tailgate/bale clamp down)
7.96m 7.96m
Overall height (chute closed)
2.93m
2.93m
Unladen Weight
3,580kg
3,590kg
Tyre size
385/55 R22.5
305/55 R22.5
Oil flow rate (min-max) (l/min) 35 - 60 35 - 60



MORE INFORMATION & PRICING

Tomahawk 505M



Key Benefits:

  • Precision Output: Delivers a fine uniform chop from the high performance mill system. Output can be calibrated by changing screens in the mill.
  • Efficient operation: The unique rotor design, developed over many years, requires low HP and delivers high output.
Description
 		505M 505XLM
Rotor
 Mill
Mill
Max. round bale diam.
1.50m
1.50m x 2
Max. rect. bale size
N/A
1.20m
Overall height*
2.44m
2.80m
Overall length
2.36m
3.77m
Drum diam.
1.83m
1.83m
Drum length (std)
1.55m
3.00m
Long drum (opt)
1.85m
N/A
Lower chute discharge height*
0.40m
0.40m
Upper chute discharge height*
1.14m
1.14m
Tractor power (min.)**
80HP / 60kW
120HP / 90kW
PTO speed 1,000 rpm 1,000 rpm
Transport width***
2.01m
 2.01m
Operating width
3.13m
3.13m
Straw giraffe discharge height*
1.84m
1.84m
Weight 970kg 1,166kg



MORE INFORMATION & PRICING

Tomahawk 5050



Key Benefits:

  • Improve palatability - operators report increased feed conversion of shredded bale silage.
  • Reduced wastage - Selective feeding / sorting is minimised and less material is pulled back into the bedding area when long silage is shredded.
  • Versatility - if you can bale it we can shred it! Feed clamp or baled silage, hay and root crops.
Description
 		5050 5050XL
Rotor
 Chop
Chop
Max. round bale diam.
1.50m
1.50m
Max. rect. bale size
N/A
1.2m x 1.2m
Overall height*
2.44m
2.84m
Overall length
2.36m
3.68m
Drum diam.
1.83m
1.83m
Drum length (std.)
1.55m
3.00m
Long drum (opt.)
1.85m
N/A
Lower chute discharge height*
0.40m
0.40m
Upper chute discharge height*
1.14m
1.09m
Tractor power (min.)**
80HP / 60kW
100HP / 75kW
PTO speed 540 rpm 540 rpm
Transport width***
2.06m
 2.06m
Operating width
2.42m
2.42m
Straw giraffe discharge height*
1.84m
1.84m
Silage giraffe discharge height* 1.53m 1.53m
Weight 877kg 1,123kg



MORE INFORMATION & PRICING

Tomahawk 505FSM



  • Drum diameter: 1.83m
  • Round bale diameter (max.): 1.60m
  • Rectangular bale size (max.): 1.2m x 1.2m
  • Height overall with machine on ground: 2.59m
  • Width with chutes closed: 2.01m
  • Lower chute discharge height*: 0.55m
  • Upper chute discharge height*: 1.26m
  • Overall length: 4.12m
  • Operating width: 3.13m
  • Weight: 1386 KG
  • Tractor power (min.)**: 120HP / 90kW
  • Short Chop Straw: Yes
MORE INFORMATION & PRICING

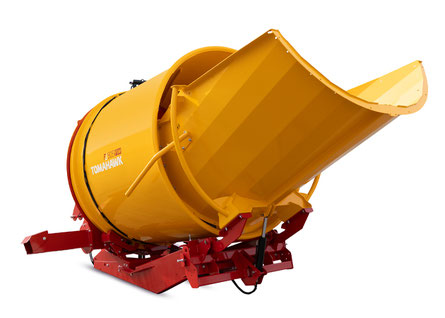

Tomahawk 500BXLM



Key Benefits:

  • The turbo fan enables centralised processing and remote transfer of milled material via a flexible hose and/ or fixed manifold system.
  • Access all areas; minimise livestock disturbance and risk of biocontamination.

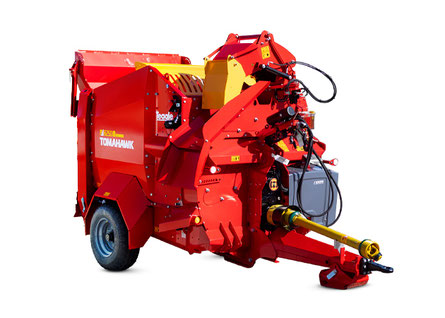

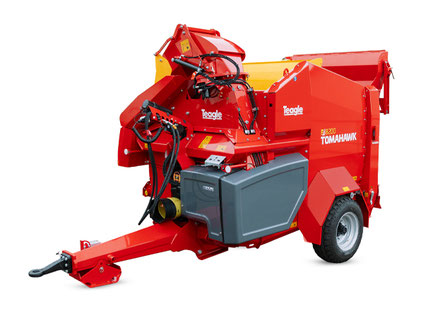

Description
 		500BM 500BXLM
Rotor
 Mill Mill
Max. round bale diam.
1.50m 1.50m
Max. rect. bale size
N/A 1.20m x 1.20m
Overall height*
2.44m 2.80m
Overall length
2.56m 3.97m
Drum diam.
1.83m 1.83m
Drum length (std)
1.55m 3.00m
Long drum (opt)
1.85m N/A
Lower chute discharge height*
0.40m 0.40m
Upper chute discharge height*
1.14m 1.14m
Tractor power (min.)**
80HP / 60kW 120HP / 90kW
PTO speed 1,000 rpm 1,000 rpm
Transport width fan no RHC***
2.51m 2.51m
Operating width fan with RHC open
3.11m 3.11m
Straw giraffe discharge height*
1.53m 1.53m
Weight 1,390kg 1,680kg



MORE INFORMATION & PRICING

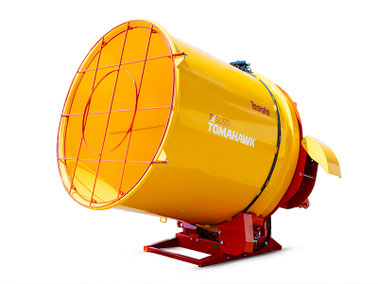

Tomahawk 500E

  • Rotor: Mill
  • Max. round bale diam.: 1.50m
  • Max. Rectangular bales : 1.20m x 1.20m x 2.40m
  • Overall height*: 2.68m
  • Overall length: 4.0m
  • Overall length with one conveyor : 7.55m
  • Overall width: 2.00m
  • Bale chamber diameter: 1.80m
  • Power (min.) 45kW
  • Rotor Speed: 1,000 rpm
  • Weight: 1,900kg
  • Conveyor Weight: 1,250kg
MORE INFORMATION & PRICING
