SWATH CONDITIONER

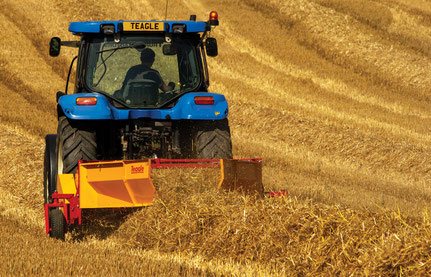

The Super-ted Swath Conditioner quickly and effectively enables farmers to preserve the quality of their crops in the field.



Key Benefits:

  • Faster Drying: The crop is lifted, with air being introduced to the swath for more even drying from top to bottom.
  • Tidier Swaths: The swaths produced by the Super-ted are box shaped with clean edges and can be adjusted in width and offset using the rear doors.
  • Efficiency: Increase workrate in the following harvesting or baling operation.
Description Super-ted 221
Pick-up width
2.20m
Overall width (with wheels/without wheels)
3.10m / 2.54m
Overall length - doors open
3.27m
Overall length - doors closed
1.86m
Overall height - in lowest working position
1.04m
Height adjustment
40 - 200mm
Castor wheel tyre size
6.00 - 9 - 10
Tractor power (min.)
60HP / 45kW
PTO speed 540 rpm
PTO type
with overrun clutch
Number of drive belts
4 x 'B' Section
Linkage
Cat. 2
Weight
795 kg
